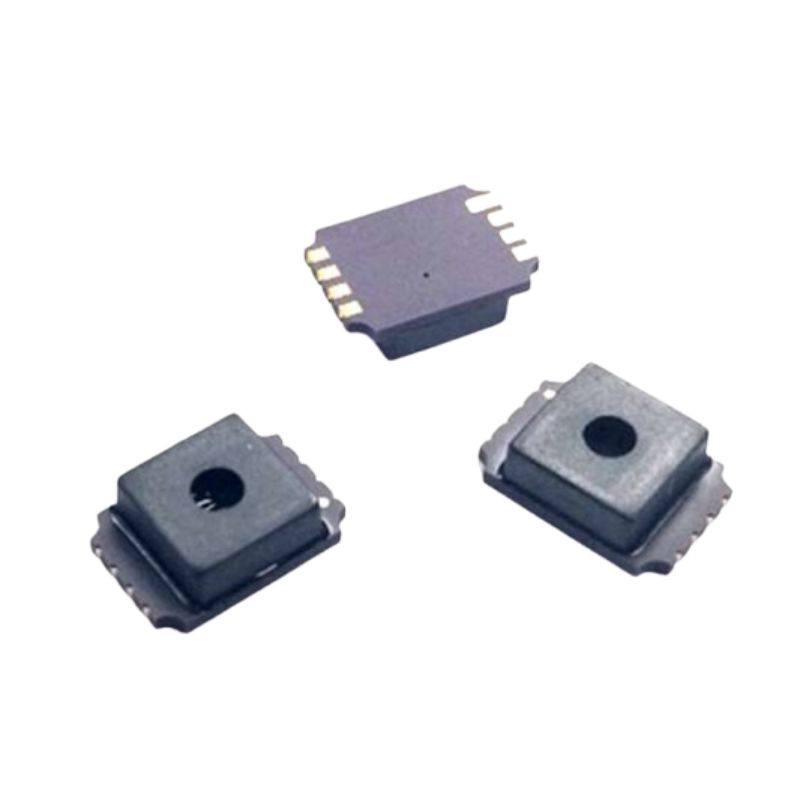

Pressure Sensor With I-C/SPI
Key Features
Piezo-resistive silicon micro-machined sensor
Gauge type pressure sensor
I2C / SPI Interface
Pressure range: + 30 kPa
Pressure Sensitivity: 0.002 kPa /LSB (Typical)
Pressure Resolution (RMS): 0.02 kPa (Typical)
24 Bit Z-A ADC
Temperature Compensation: 0 ~ 50 C
Operating voltage 3.0V
Operating mode current: ~0.6mA (Typical)
Sleep Mode current: 20nA (typical)
SOP6 package
RoHS compliant and Halogen-free
Applications
Medical instrumentation
Industrial pneumatic control
Air Conditioning
HVAC Application
Home electricity appliances
Description
The US6330 is the pressure sensor which measures gauge pressures. It consists of a silicon
micro-machined sensing element chip and a signal conditioning ASIC. The ASIC is equipped
with a 24-bit resolution 2-A ADC and outputs a highly precise pressure value as a digital
value. The pressure sensor element and the ASIC are mounted inside a system-in-Dackage
and wire-bonded to appropriate contacts. The US6330 provides digital output interface. can
achieve ESD robustness, fast response time, high accuracy and linearity as well as long-term
stability. All measurement data is fully calibrated and temperature compensated. In addition,
it allows for easy system integration.
原產地:台灣
競爭特點:接受獨特設計或LOGO ,多樣設計 ,接受原廠委託設計製造 ODM ,接受原廠委託代工製造 OEM
銷售方式:製造 ,批發 ,合作 ,服務 ,出口
付款方式:T/T,L/C
